For the past year, I’ve been intrigued by the hand on the Optimus robot. I dug deep into it last year. I even did a podcast about it. I knew they were ahead in their DOF and their design. I became a bit obsessed with “the hand problem.”
But, I held off on writing much about Optimus. Nothing had shipped. The robot was mired in delays. It was trapped in the cycle of Elon “promising plenty” on the investor calls, but the actual reality being “less than.”
And, that’s why the hand is different.
The Optimus hand is genuinely impressive and Tesla has been unusually transparent in their struggles trying to get it right.
Musk said human‑level manual dexterity is “harder than Cybertruck or Model X… somewhere between Model X and Starship,” and has estimated the hand at ~60% of the overall Optimus challenge, in part because there is no existing supply chain for this class of precision tendon hardware.
This clip where Elon Musk is talking to Lex Fridman is from last year. Back then, Elon Musk said: “”Engineering in the Optimus from an electromechanical standpoint the hand is probably roughly half of the engineering.”
He told Lex about previous iterations. “The current Optimus, we tried to put the actuators in the hand itself. (laughs) Then, you end up having these…”
Lex: “Giant hands?”
Musk: “Yeah, giant hands that look weird.”
He went on to explain Tesla wants to have a humanoid robot that can do the things a human can do. He described that as “a very high bar.” He promised: “We’ll continue to put a tremendous amount of engineering effort into improving the hand.”
One year later, Tesla is filing for patents.

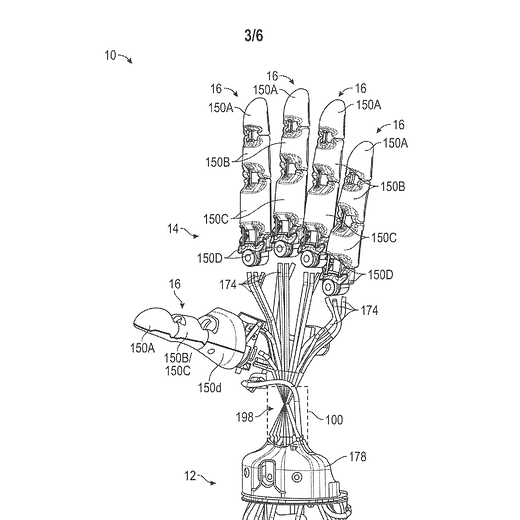

The primary filing, “Mechanically Actuated Robotic Hand,” describes a tendon/cable‑driven hand with:
Actuators moved out of the hand into the forearm
Roughly four degrees of freedom per finger
Two additional degrees of freedom at the wrist
Three thin, flexible tendons per finger running from forearm actuators, through the wrist, into channels inside the phalanges
In total, the V3 configuration Teslarati describes reaches 22 DoF in the hand, plus wrist DoF, putting Optimus in the same ballpark as human hand complexity while maintaining a highly structured, repeatable geometry. (This is what Musk describes in the video above.)
The “wrist router” as enabling technology
The most important detail for anyone who’s ever fought a tendon system is not the number of joints, but the wrist.

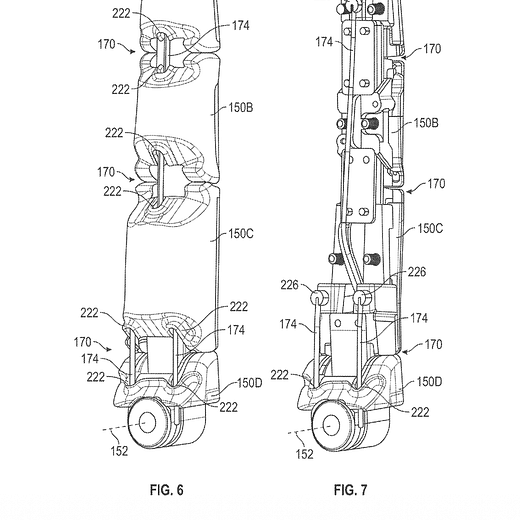

In the patent, thick bundles of cables exit the forearm in a lateral stack, then pass through a specialized transition zone in the wrist where they’re re‑ordered into a vertical stack into the palm and fingers. Curved guides and pivots are shaped to:
Reduce friction and effective cable stretch
Minimize torque and crosstalk between channels
Preserve tension and control authority under combined yaw and pitch at the wrist
In other words, Tesla is attacking the exact failure modes that cause tendon hands to drift out of calibration after real industrial duty cycles: sawing through guides, accumulating slack, and losing independence between joints.
A companion “Robotic Appendage” patent covers the entire forearm–palm–finger assembly, with tensile cables returning to forearm actuators, and “Joint Assembly for Robotic Appendage” introduces curved mating surfaces and a composite flexible member for smooth pivoting under tension. Both read like durability and manufacturability fixes: fewer exotic parts, planar geometries, and features that can tolerate millions of cycles.
Why this matters for robots doing “boring” work
Tesla’s stated roadmap has Optimus deployed internally on factory tasks before any broader commercial release. For the humanoid to tackle demanding factory work, the hands have to do three things at once:
Interface with legacy human tooling and fixtures
Survive automotive‑grade duty cycles
Be cheap enough to manufacture in volume
Relocating all significant actuation to the forearm reduces the hand’s moment of inertia and impact loads, which in turn lowers peak cable tension and joint stress during aggressive moves. The tendon routing and wrist transition geometry are expressly optimized for the combined wrist motions that show up in real assembly work: reaching into constrained spaces, twisting fasteners, reorienting parts mid‑air.
For those who would like to learn more, and dive deeper into the diagrams, here is the patent itself.
